copper rolling mill
copper rod cold rolling mill is a new technology in the 90s in the world. It is mainly used for cold continuous rolling of bright oxygen-free copper rod wires.
Products Description
copper rod cold rolling mill is a new technology in the 90s in the world. It is mainly used for cold continuous rolling of bright oxygen-free copper rod wires.
Main Parameters
- Scope of application: Φ7.8
- Maximum diameter of circle: Φ1600mm
- Maximum weight of the loop: 3 tons
- The specification of the reel: Φ600×Φ1600×Φ1000mm
- Motor power: frequency conversion speed AC 2.2KW
Main Parameters
| model250 | Roll diameter | Motor power | Maximum incoming billet（mm） | Rod specification diameter（mm） | Number of rolling passes | Final rolling speed（m/s） |
| 8racks | Φ250 | 110KW | Φ17 | Φ7.8 | 8 | 1.65 |
Structure description

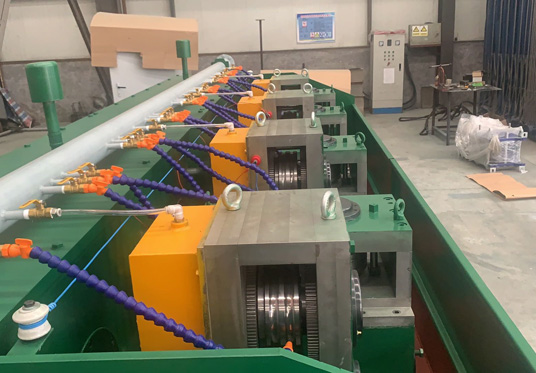

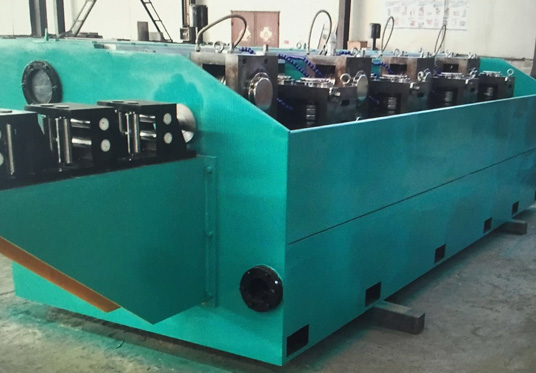

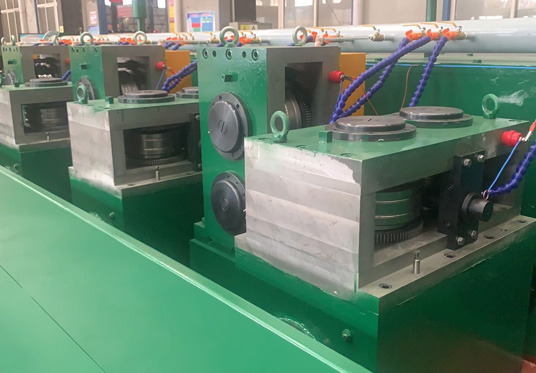

1.This unit is composed of a two-high continuous rolling mill as a whole, a copper rod coiling take-up machine, a transmission lubrication system and an emulsion cooling system. The main motor and take-up machine of the copper rod rolling mill adopt variable frequency stepless speed regulation, and the mechanical transmission part of the equipment And the bearings are lubricated by oil injection and reflux. The copper rod rolling adopts emulsion back spray cooling, and the lubricating oil and cooling liquid are reasonably separated from each other. This is the reliability, durability and easy maintenance of the equipment.
2.The copper rod coiling machine of this unit consists of winding rods. Due to the frequency conversion speed regulation, the loop forming speed is steplessly regulated within a certain range, and the copper rod rolling speed is matched, so that the take-up reel rotates into a loop with the output rod speed. The maximum weight of the loop is 3 tons. The loop specification: Φ600 ×Φ1600×Φ1000
