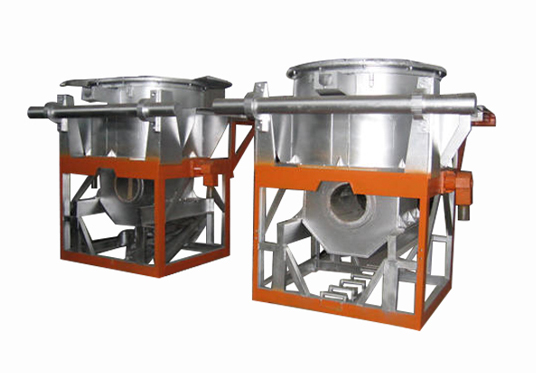

Induction dumping melting Furnace Foundry Furnace
Hydraulic dumping furnace is designed on the basis of electromagnetic induction principle. After the induction coil electrified, alternating magnetic flux is generated. It passes through the iron core to form a closed magnetic circuit. This alternating magnetic flux induces electromotive force and secondary current in the melting channel. This current converts electrical energy into heat energy through the resistance of the metal furnace material , which melts metal in melting channel.
Products Description
Induction tilting furnace：Hydraulic dumping furnace is designed on the basis of electromagnetic induction principle. After the induction coil electrified, alternating magnetic flux is generated. It passes through the iron core to form a closed magnetic circuit. This alternating magnetic flux induces electromotive force and secondary current in the melting channel. This current converts electrical energy into heat energy through the resistance of the metal furnace material , which melts metal in melting channel.
Product Composition
①Furnace body ② inductor ③ hydraulic tilting system ④ water cooling system ⑤ electrical panel
Main Parameters
| Model | BTQD-300KG | BTQD-500KG | BTQD-750KG | BTQD-1000KG | BTQD-1500KG | BTQD-3000KG |
| Rated power(KW) | 75 | 120 | 200 | 250 | 400 | 600 |
| Melting rate(KG/H) | 300 | 500 | 750 | 1000 | 1500 | 3000 |
| Furnace volume(T) | 2 | 2 | 3 | 3.5 | 4.5 | 5.5 |
| Nominal voltage(V) | 380 | |||||
| Phases | 3 | |||||
| compensated power factor | 0.9-1.0 | |||||
| cooling type | Water cooling | |||||
| cooling water pressure | 0.3~0.4Mpa | |||||
| cooling water consumption | 3.0Nm3/h | |||||
| furnace controlling temperature | 1180~1250℃ | |||||
| angle of inclination | 95º | |||||
| speed of inclination | 1200mm/min | |||||
Why Choose Us
Product advantages:
- Higher melting efficiency,Greatly saving power,Compact structure with larger capacity.
- Low temperature, No Gas, No polution. Easy & safe operation.
- Faster heating-up temperature. Temperature easy to control, Higher productivity.
Pre-sale service:
- Free technical consult
- Free parameter details
- Field/video factory visit support
- New customer discount
- Human online service
After-sales Service:
- 1 Year warranty
- Field installation & inspection
- Available engineer overseas instruction
- Operation training
- Discounted spare part
FAQ
-
How do you control the quality of your products?
We are manufacturer with our own factory, so it is convenient for one-stop production and inspection. There are experienced engineers and professional QC team in our company. The quality is definitely reliable.
