Oxygen-free copper rod upcast machine equipment
Copper rod upcasting machine use cathode copper or scrap copper as raw material, to produce oxygen-free copper rod/ strip(foil billet)/tube. Besides, customization is provided.
Products Description
Copper rod upcasting machine use cathode copper or scrap copper as raw material, to produce oxygen-free copper rod/ strip(foil billet)/tube. Besides, customization is provided.
Main Parameters
| Model | Strand | Dia.(mm) | Speed | Annual Capability | Driver | Power consumption | Installation capacity |
| SYLZ-1000T | 2 | 8-20 | max3.2m/min | 1000 tons | double servo | 100kw | 160KVA |
| SYLZ-2000T | 4 | 8-20 | max3.2m/min | 2000 tons | double servo | 160kw | 220KVA |
| SYLZ-3000T | 6 | 8-20 | max3.2m/min | 3000 tons | double servo | 220kw | 300KVA |
| SYLZ-5000T | 10 | 8-20 | max3.2m/min | 5000 tons | double servo | 290kw | 330KVA |
| SYLZ-6000T | 12 | 8-20 | max3.2m/min | 6000 tons | double servo | 300kw | 350KVA |
| SYLZ-8000T | 14 | 8-20 | max3.2m/min | 8000 tons | double servo | 400kw | 500KVA |
| SYLZ-1000T | 16 | 8-20 | max3.2m/min | 10000 tons | double servo | 450kw | 60KVA |
| SYLZ-10000T | 20 | 8-20 | max3.2m/min | 12000 tons | double servo | 480kw | 600KVA |
| SYLZ-15000T | 24 | 8-20 | max3.2m/min | 15000 tons | double servo | 700kw | 900KVA |
Working Process
-
Cathode Copper Plate
-
Melting Furnace
-

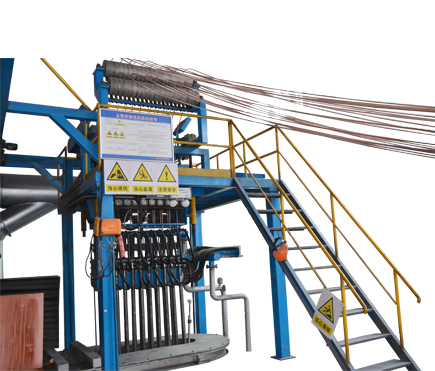

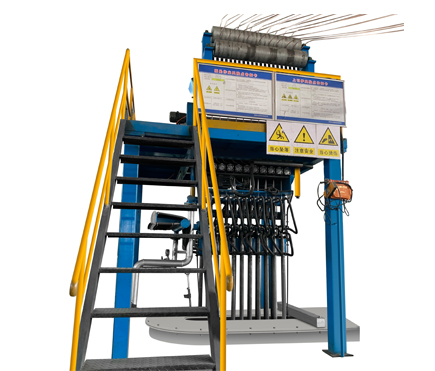

Upwards Casting Machine
-
Finished Copper Rod Coil
- Prepare the raw material - cathode copper or copper alloy.
- Melting the copper cathode to liquid through the melting furnace, separate it from the air by a layer of charcoal or graphite flakes at the same time.
- Keeping the copper in liquid situation at the holding furnace with the temperature of 1150℃±10℃.
- Copper liquid is rapidly crystalized by in the graphite mold, continuously casting copper rods.

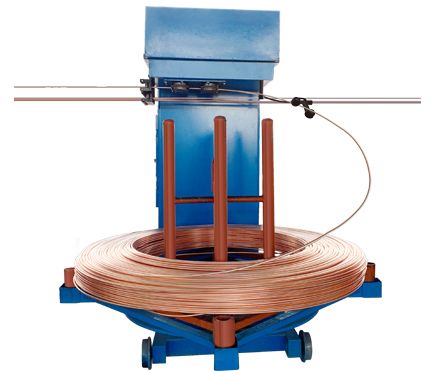

- The final step will be completed by double-strand take-up machine and other auxiliary equipment.
- Annual capacity of a single machine line is from 1000 tons to 15000 tons
Details Images

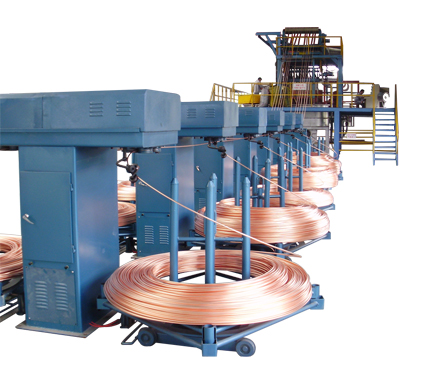

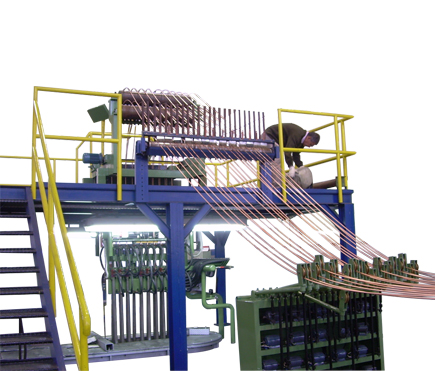

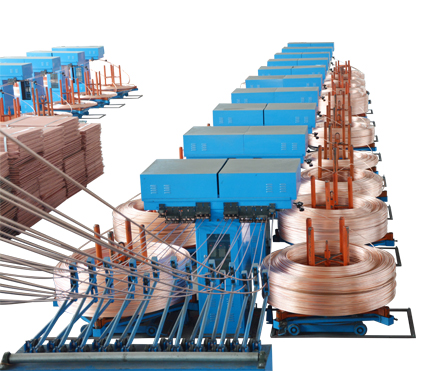

Product Details
Finished Products
Finished products by upcasting machine can be:
- Copper rod
- Copper strip/foil billet
- Copper tube/pipe billet

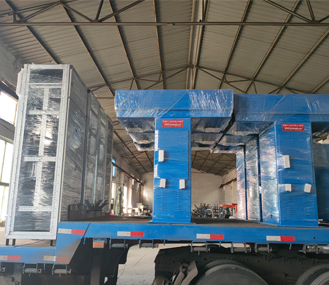

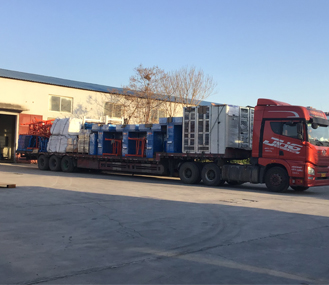

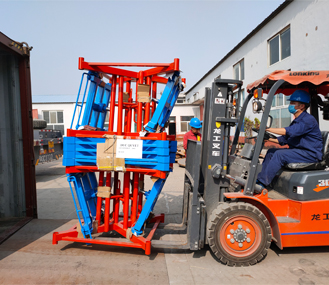

Packing&Shipping
