copper rod extrusion machine
The continuous extrusion equipment is to extrude the aluminum rod to generate high pressure and high temperature. Through mold extrusion forming, it can adapt to small-batch production of various kinds, and can also adapt to large-batch production.
Products Description
The continuous extrusion equipment is to extrude the aluminum rod to generate high pressure and high temperature. Through mold extrusion forming, it can adapt to small-batch production of various kinds, and can also adapt to large-batch production.

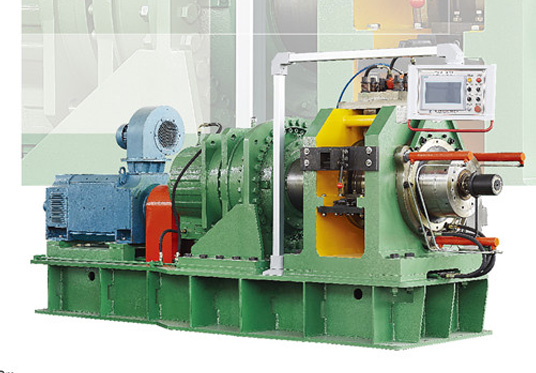

Parameters of the host machine
| Model of the host machine | JYJ-300 |
| Nominal diameter of the extrusion wheel | 300mm |
| Power of the main motor | 90kW |
| Rotating speed of the extruding machine | 4-12.5m/rpm |
| Surplus material rate | 1-3% |
Types of raw materials
TU2 oxygen free copper rod, H60-65 brass and the surface shall be clean and free of oil dirt, non-oxidation; the Yield strength: less than 120Mpa.
Technical parameters of the product
| TU2 Copper rod | H60-65 Copper | |
| Scope of the product section | 5-250mm2 | 5-200mm2 |
| Max. width of the product | 50mm | 30mm |
| Diameter of the circular rod | Ø2.5-≤30mm | Ø2.5-20mm |
| Diameter of raw material | ≤1:15 | ≤1:15 |
| Average production rate | 450kg/h | 250kg/h |
Main Parameters
| No. | Configuration name | Quantity |

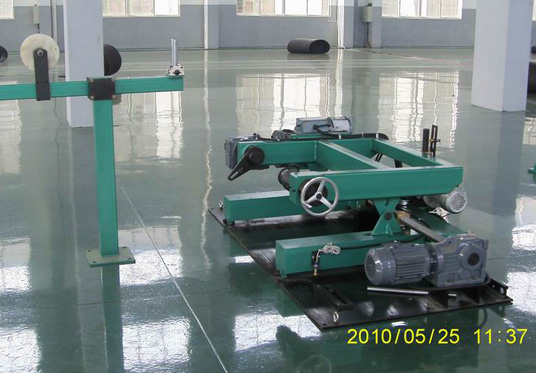

| 1 | Discharge rack of the copper rod | 1 |
| 2 | Straightening, feeding and cutting machine | 1 |
| 3 | Copper rod heating and control system | 1 |
| 3 | Extruding machine | 1 |
| 4 | Lubrication and hydraulic device | 1 |

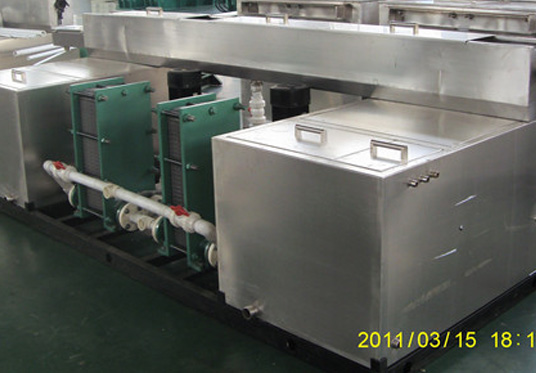

| 5 | Cooling circulating system | 1 |
| 6 | Tension and meter device | 1 |
| 7 | Wire recoiling machine | 1 |
| 8 | Electrical control system | 1 |
